OpenWeatherMap integration guide

In this guide, we will show you how to gather data from OpenWeatherMap using
Node-Red, process, and insert the data into Clarify.

📘

OpenWeatherMap

OpenWeatherMap is an online service, owned by OpenWeather Ltd, that provides global weather data via API, including current weather data, forecasts, nowcasts, and historical weather data for any geographical location.* (Wikipedia)

To be able to follow this guide you will need:

We will assume that you have basic knowledge and a working instance running Node-RED, if not please read our Introduction and the guide on how to Install Clarify node.

Getting The Weather data

In this guide, we will be using the OpenWeather map node. This node provides
weather data for a specific location, this can be current weather, 5 day forecast or combined weather/forecast for. In this guide, we will use the current weather option.
The data retrieval is triggered on an interval which will give us continuous
data.

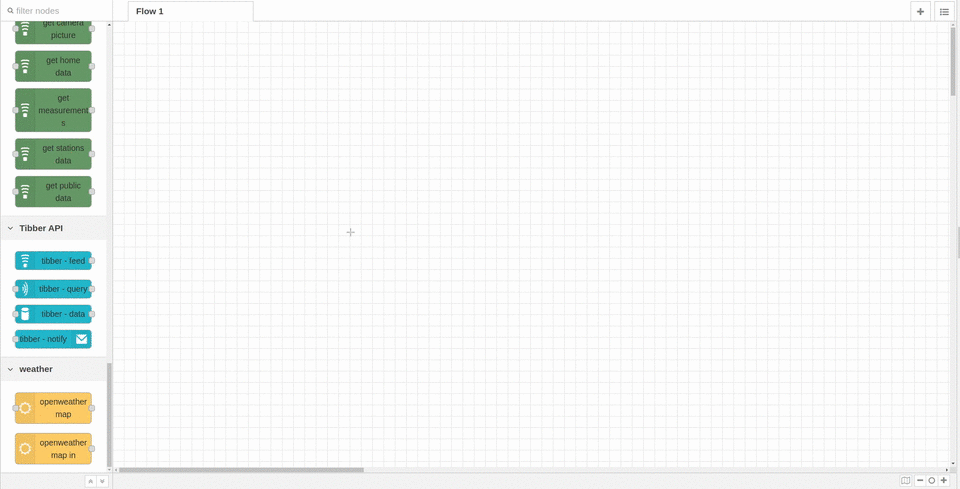

Install the node-red-openweathermap nodes from the palette.Install the node-red-openweathermap nodes from the palette.

Install the node-red-openweathermap nodes from the palette.

Start by dragging the node onto an empty flow, and configure the node with your
api-key and location (for example Trondheim, NO, you can also use
https://openweathermap.org/find to be sure that your location is available).

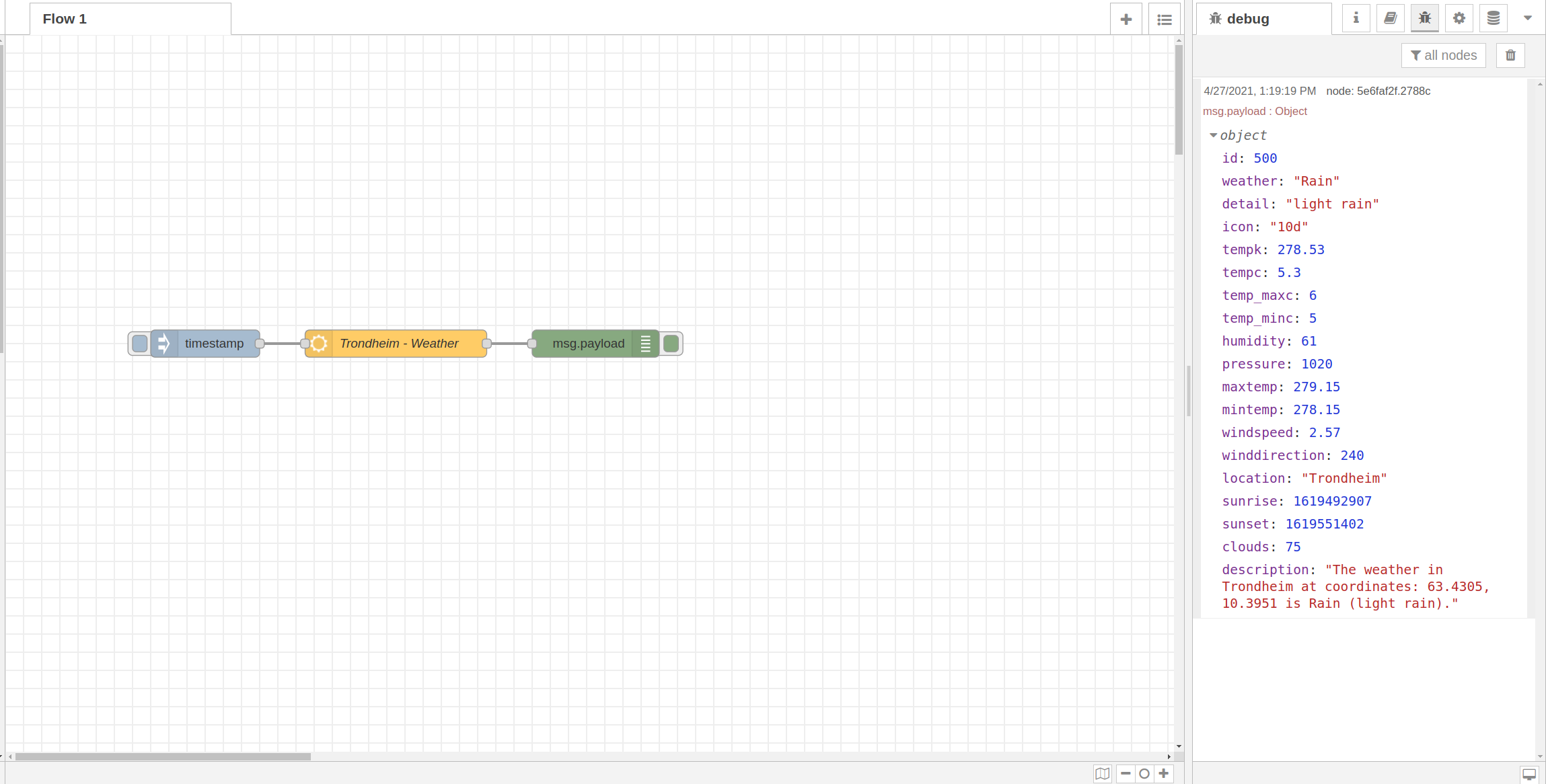

Drag in an insert node to trigger the flow and connect a debug node to inspect
the result. The flow and result should look like the image below. As you
can see we have the location of Trondheim, Norway. This gives the current
weather which includes temperature, humidity, wind speed, etc.

Process and prepare for Clarify node

The next step is to create a function that processes the data from
OpenWeatherMap, into one message per measurement. This message must contain the
meta-data and value. The ID of the message can be picked by you but must be
consistent. In this guide, we use the name of the location together with the measurement
name. We also set the name of the signal and adds some more info as labels to
easier distinguish between the signals in the Clarify Admin Panel.

The code for the processing is given below and can be copied into a function
node and added to the flow.

let outputMsgs = [];

// define the data that we're interested in
let dataPoints = [
    "tempc",
    "temp_maxc",
    "temp_minc",
    "humidity",
    "pressure",
    "windspeed",
    "winddirection",
    "clouds"
]

extractData(outputMsgs, msg.payload);

// Add additional data to each measurement
outputMsgs.forEach(m =>{
    m.signal.labels["country"] = [msg.location.country]
    m.signal.labels["city"] = [msg.location.city]
});

return [outputMsgs];

// Process every main- and sub-module, extract available measurements
// and generate the input that the Clarify node expects.
function extractData(res, m){
    // get the current time as ISO.
    let time = new Date().toISOString()

    // go through the entries from the response from openweathermap.
    Object.entries(m).forEach(entry => {
        const [key, value] = entry;
        // add the data if the key is in out dataPoints.
        if (dataPoints.includes(key)) {
            res.push({
                topic: m.location.toLowerCase() + "_" + key,
                signal: {
                    name: key,
                    labels: {}
                },
                payload: {
                    times: [time],
                    values: [value]
                }
            });
        }
    });
    return res;
}

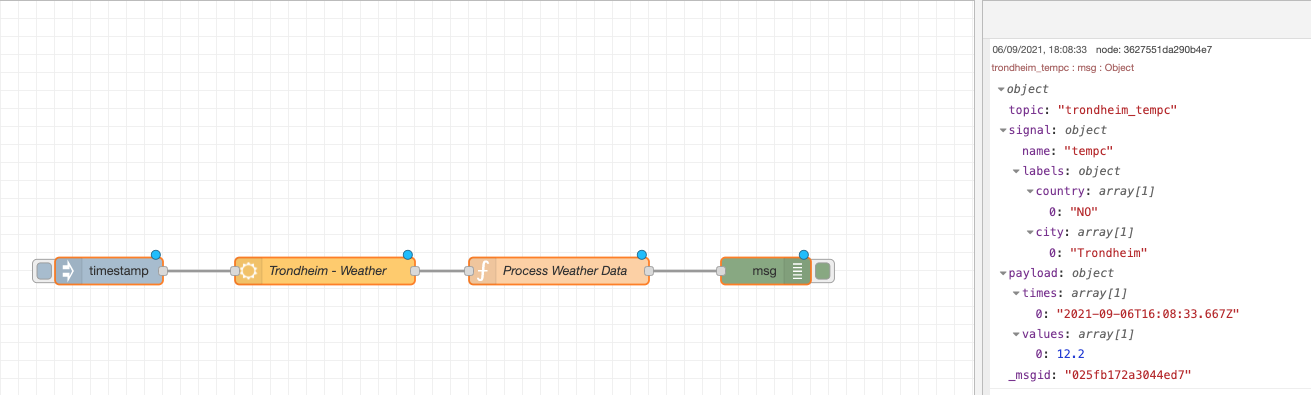

The flow and the JSON output for one measurement.The flow and the JSON output for one measurement.

The flow and the JSON output for one measurement.

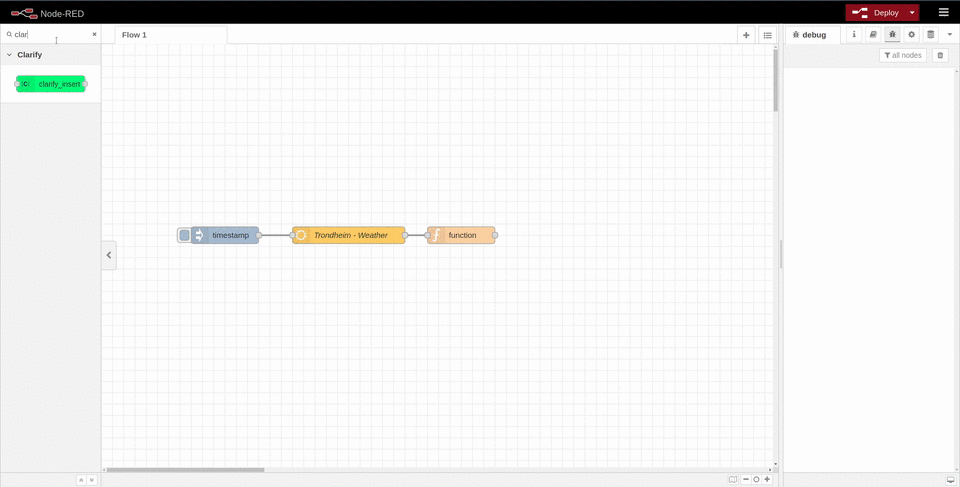

Write data to Clarify

The messages now align with the format that Clarify node expects and we can then add the Clarify insert node to the flow and wire it up. The debug panel will show the responses from the Clarify-API.

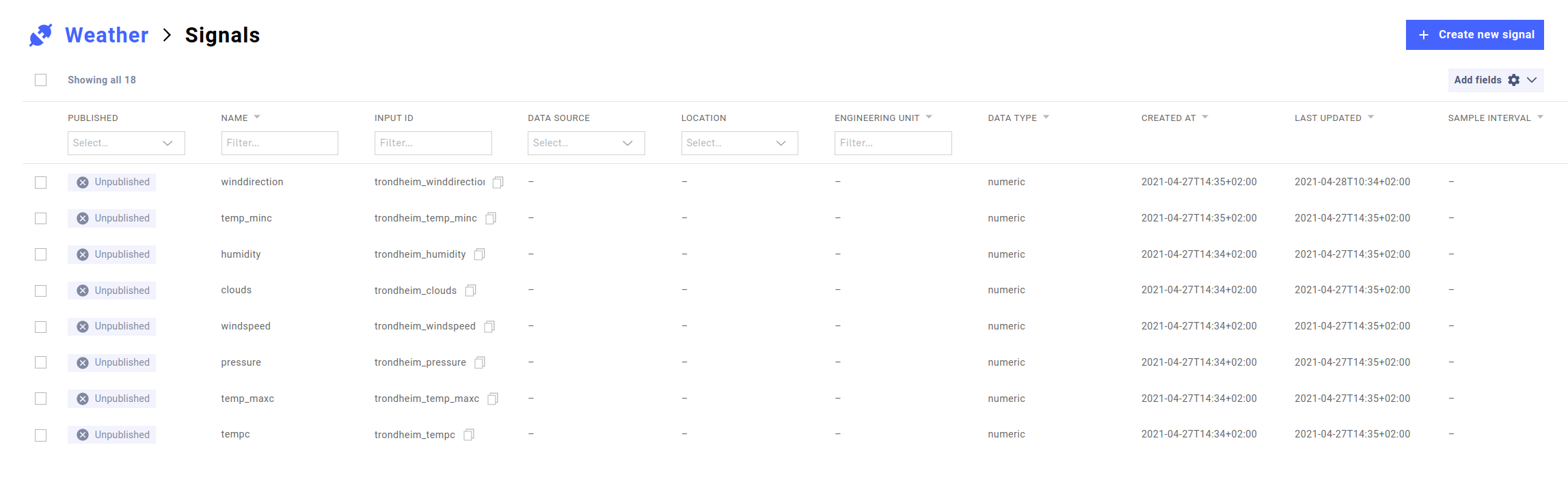

If everything works as expected you should now find all the new signals when looking in the Clarify admin panel. Choose a signal and publish it to view the data in the Clarify Timelines view.

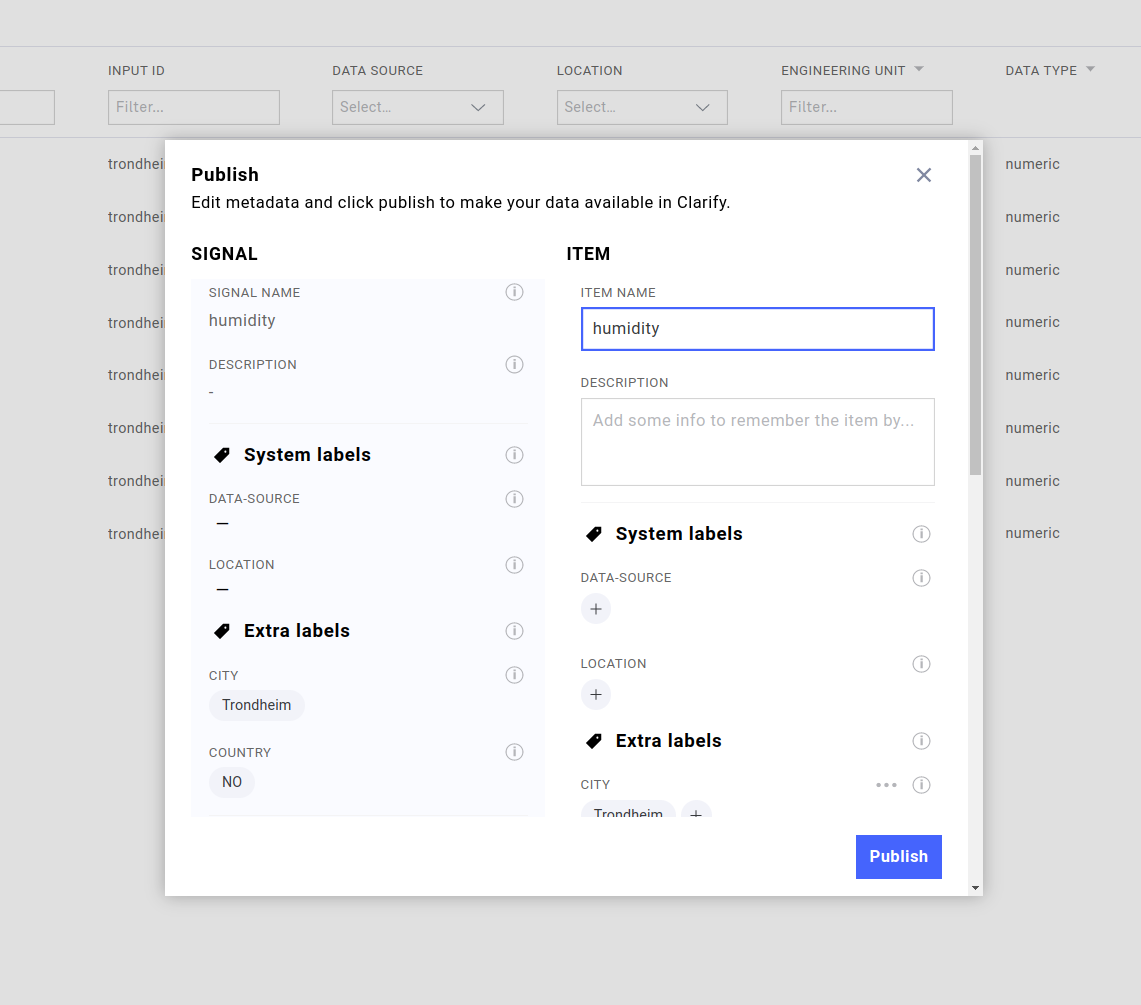

Publish the signal (create an item) to make it visible in the UI.Publish the signal (create an item) to make it visible in the UI.

Publish the signal (create an item) to make it visible in the UI.

🚧

Adjust the inject node to run periodically

After you have verified that your flow works as expected remember to set the inject node to run periodically. Every 10 minutes should be appropriate for the OpenWeatherMap data source.

Congratulations - you should now have a working OpenWeatherMap integration that fills your Clarify instance with interesting weather data for your desired location.

If you found any errors, ambiguities or have any suggestions on how to make this guide better, please contact us via chat or send an email to [email protected]
